ESD Shielding Bags: Ultimate Protection for Sensitive Electronics
Core Product Advantages
1. Dual Protection Performance: Integrates static dissipation and EMI shielding functions. The outer and inner electrostatic dissipative layers quickly release accumulated charges, keeping surface voltage below 100V; the middle aluminum metallization layer adopts Faraday cage principle, with a resistance of less than 100Ω (meeting international standards), effectively blocking 70% of external electromagnetic waves and reducing interference intensity to 1/1000.
2. Superior Material & Structure: Adopts multi-layer composite structure (PET + Aluminum Metallization + CPP/CPE + Anti-static Coating). PET layer enhances durability and puncture resistance, CPP/CPE layer ensures strong heat sealing and flexibility, and the overall design achieves excellent tensile strength (>18 lbs/inch) and moisture barrier performance (<0.2 g/100 sq.in/24h).

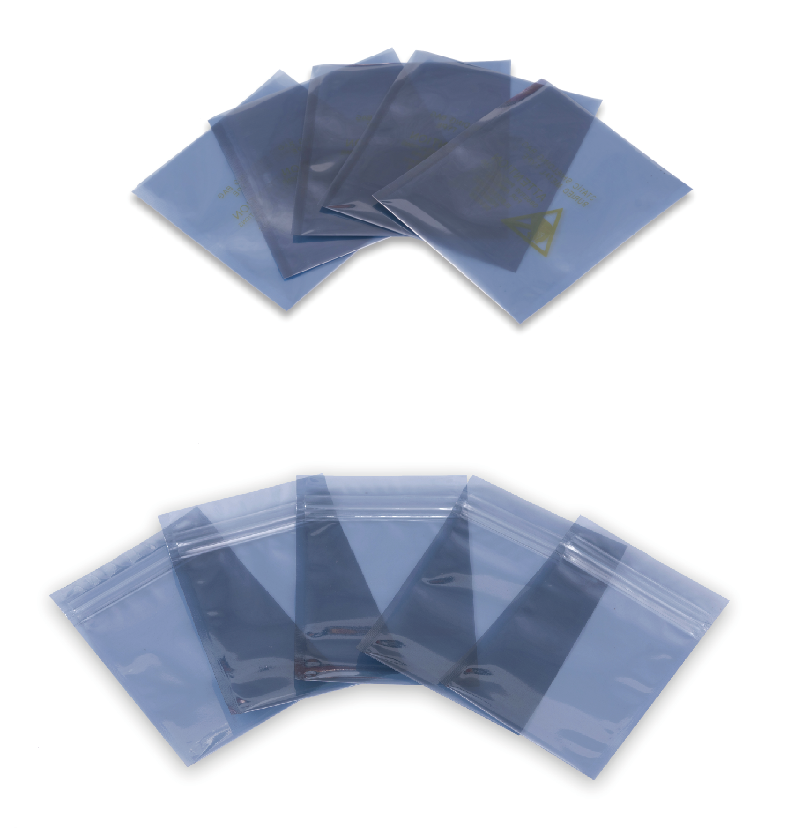

3. Practical & Versatile Design: Silver-gray translucent appearance allows easy identification of internal items and barcode scanning without opening the bag. Available in flat bags, self-sealing bags, and zipper bags, with customizable thickness (75μm-120μm) to meet different packaging needs.
4. Compliance & Reliability: Fully complies with ROHS standards and passes strict international tests (ASTM D257, EIA 541, etc.). Static decay time is less than 0.03 seconds, and shielding effectiveness is less than 15 nJ, ensuring stable protection for sensitive components.
Key Technical Specifications
Performance Indicator Unit Standard/Result Test Method
Metal Layer Resistivity Ω/sq <1.0×10² ASTM D257
Inner/Outer Surface Resistance Ω/sq 10⁸ - 10¹⁰ ASTM D257
Static Decay Time Second <0.03 FTMS 101 MTH 4046
Friction Voltage Volt <100 EIA 541
Thickness μm 76±10% / 120±10% Micrometer Measurement
Moisture Vapor Transmission Rate (MVTR) g/100 sq.in/24h <0.2 ASTM E96
Wide Application Fields
Ideal for packaging and protecting all types of electrostatic and electromagnetic sensitive products across industries:
- Electronics & Semiconductors: PCBs, IC chips, semiconductors, hard drives, optical drives, and graphics cards .
- Communication Equipment: Mobile phone motherboards, communication modules, and signal components.
- Aerospace & Medical: Precision aerospace electronic parts and sensitive electronic components in medical devices.
- LED & Optoelectronics: LED light strips, patches, lamp beads, and other optoelectronic components.
Why Choose Our ESD Shielding Bags?
Static damage is one of the leading causes of electronic product failure during circulation, resulting in huge economic losses. Our ESD Shielding Bags build a comprehensive three-dimensional protection system through professional material formula and structural design, effectively reducing product defect rates and ensuring the safety and stability of your high-value components throughout the supply chain.
